Integra DRX-3.2

Описание Integra DRX-3.2

AV-ресивер

AMPLIFIER:
Channels 7.2
POWER (8 Ω 20-20kHz 0.08%) / CH 100
Amplifier Frequency Response 5Hz — 100kHz
Wide Range, High Current Power Supply Natural Harmonics Technology, Massive High-Power Transformer
High Instanteneous Current Capability 30 Amps, 1kHz, 00.1 Ω Pulse
THX Certified
Continuous 6 Ω Rated ✓
Low Impedance Drive- Certified 4 Ω
Hand Selected Parts to Ensure Low Impedance Performance Custom- Audio Tuned
Discrete Output Stages for All Channels Discrete 2-Stage
All Channels Equal Power Output ✓
PUSH-PULL Amplifier Design ✓
Independent Power Supply 2
Bi-amp Capability — Front L/R Channels ✓

PROCESSING:
Dolby Atmos and Dolby Surround ✓
Dolby TrueHD ✓
DTS:X and DTS Neural:X ✓
DTS-HD Master Audio ✓
THX Processing Modes & Loudness Plus
VLSC for Noise Free Signal Path Front Left / Right Channels
AccuEQ Automatic Room Calibration Advanced w/AccuReflex
GAME Surround Modes (Rock, Action, Sports, Role Play) ✓
Advanced Music Optimizer to Enhance Compressed Audio Files ✓
Premium Quality Digital-to-Analog Conversion 384k / 32-bit AKM4458 Differential DAC
32-Bit DSP Chip for Advanced Processing ✓
Ultra-Low-Jitter Circuitry to Improve Audio ✓
Adjustable Crossover by Channel Pair 40/45/50/55/60/70/80/90
100/110/120/130/150/180/200 Hz
Accurate Speaker Distance Setting 0.1 — foot
A/V Sync Delay (by Source) -100 to +500 ms

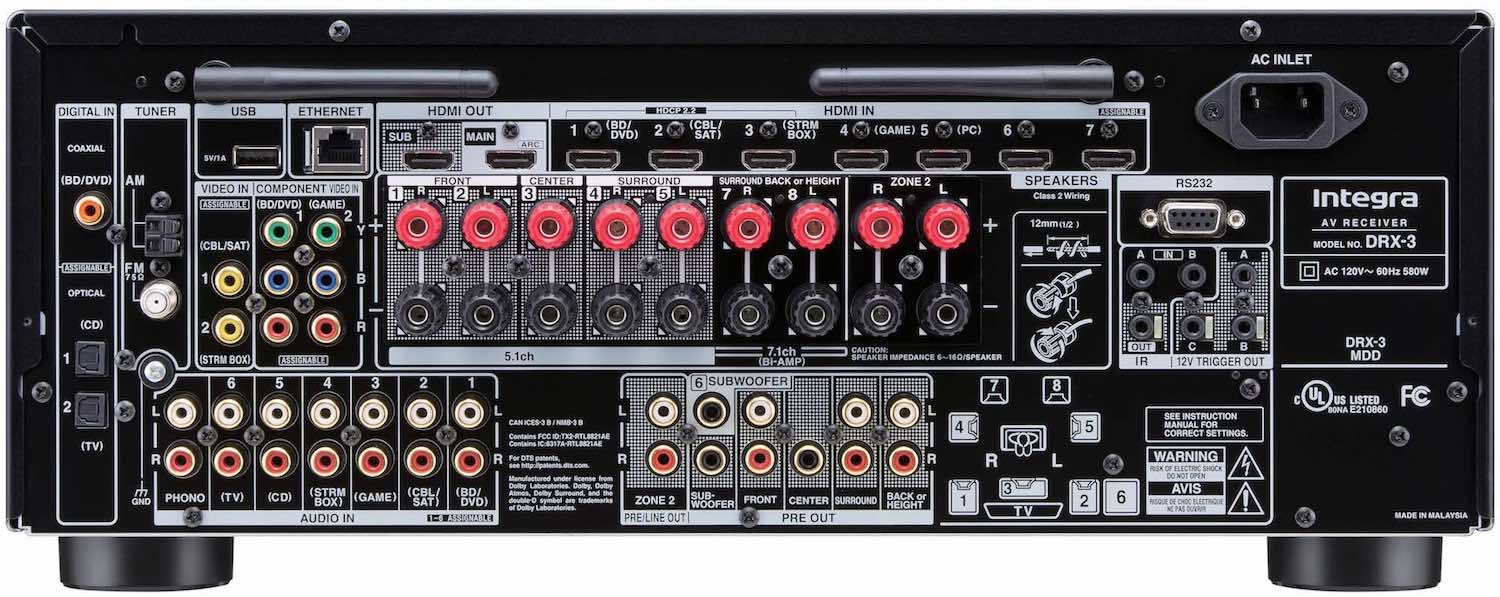

CONNECTIVITY:
HDMI Inputs / Output(s) 8 / 2
HDMI 4K / 60 Hz- Capable HDMI Terminals ✓
HDCP 2.2 Copy-Protection Compatibility ✓
HDMI Support for High Dynamic Range (HDR10) ✓ (Dolby Vision via firmware update)
HDMI Support for BT.2020 ✓
4K / 60 Hz 4:4:4 Colorspace Support ✓
HDMI Support for 3D, Audio Return Channel and CEC ✓
HDMI Support for Deep Color, x.v.Color, LipSync ✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM ✓
Front Panel HDMI Input ✓
HDBaseT Output
Analog to HDMI Upconversion From 480i / 576i
4K Upscaling from 1080p via HDMI
Component Video Inputs 2
Composite Video Inputs 2
Digital Audio Inputs (COAX / OPT) 1 / 2
Analog Audio Inputs 8
Phono Input ✓
Front Panel A/V Input ✓
Analog Pre-outs 7.2

NETWORK / USB:
FireConnect Wireless Mult-Room Audio Streaming Technlogy ✓
App Control via iOS and Android-Powered Devices Integra Control Pro
Apple Airplay ✓
iPod / iPhone / iPad Ready ✓
Google Chromecast built-in ✓
Google Assistant (Voice Control) ✓
Home Network Music Streaming ✓
TIDAL High Fidelity Music Streaming ✓
Pandora ✓
Spotify ✓
Spotify Connect ✓
TuneIn Radio ✓
Deezer ✓
DSD Support (2.8, 5.6, 11.2 MHz) ✓
Dolby TrueHD Support ✓
Apple Losless (ALAC) Support ✓
WAV Support ✓
AIFF Support ✓
DSDIFF Support ✓
FLAC Support ✓
MP3 Support ✓
USB Input for Streaming Audio ✓
WiFi Certified IEEE 802.11 a/b/g/n
5 Ghz / 2.4 Ghz
Bluetooth Built-in
Firmware Updates via Network and USB ✓

MULTIZONE:
Powered Zone 2 ✓
Powered Zone 2 A / B
Powered Zone 3
Fixed or Variable Zone 2 Line Out ✓
Fixed or Variable Zone 3 Line Out
Zone 2 Video Output
Zone 2 OSD
Zone 2 Audio DAC SPDIF, NET, USB
Zone 3 Audio DAC
Whole House Mode

INTEGRATION ACCESS:
Bi-directional RS-232 Control Port ✓
Bi-directional Ethernet Control Port ✓
Rear Panel IR Input / Output 2 / 1
RIHD (Remote Interactive over HDMI) ✓
12V Trigger (with Adjustable delay) x3, Assignable

MISCELLANEOUS:
GUI for Setup Menu ✓ (Advanced HD)
Quick Setup Menu ✓
Input Name Edit Fully Customizable
HDMI Standby «Through» Mode Assignable
Dealer Settings Memory Store & Recall Function ✓
Screensaver Function ✓ (Advanced)
Hybrid Standby to Reduce Power Consumption ✓
Smart Grid Ready ✓
Anti-Resonant Aluminum Front Panel ✓
Gold-Plated RCA Terminals ✓
Oversized Detachable AC Cord ✓
Rack Mount Kit Available IRK-155-3D
