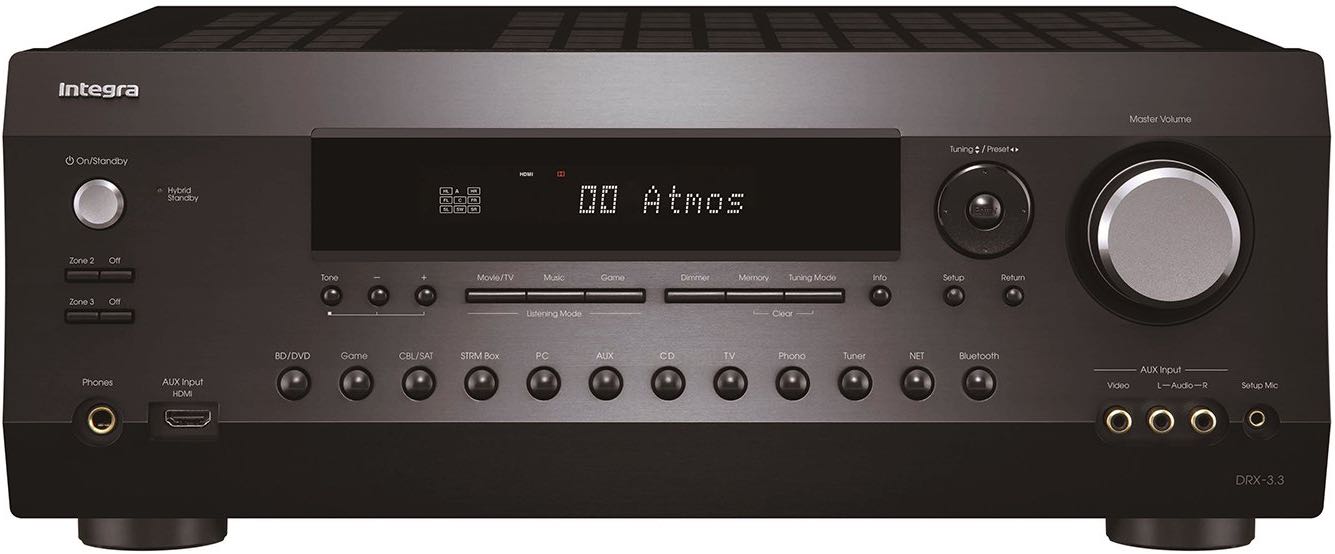

Integra DRX-3.3

Описание Integra DRX-3.3

AV-ресивер 9.2 с AirPlay 2, Bluetooth, WiFi.

AMPLIFIER
Channels 9.2
Power (8 Ω 20-20kHz 0.08%) / CH 90
Amplifier Frequency Response 10Hz — 100kHz /+1 dB, -3 dB (Direct Mode)
Wide Range, High Current Power Supply Natural Harmonics Technology, Massive High-Power Transformer
High Instanteneous Current Capability 30 Amps, 1kHz, 00.1 Ω Pulse
Continuous 6 Ω Rated ✓
Low Impedance Drive- Certified 4 Ω ✓
Hand Selected Parts to Ensure Low Impedance Performance Custom- Audio Tuned
Discrete Output Stages for All Channels Discrete 2-Stage
All Channels Equal Power Output ✓
PUSH-PULL Amplifier Design ✓
Independent Power Supply 2
Bi-amp Capability — Front L/R Channels ✓

PROCESSING
Dolby Atmos and Dolby Surround ✓
Dolby Atmos Height Virtualization ✓ (Enabled with a future firmware update)
Dolby Vision ✓
DTS:X and DTS Neural:X ✓
DTS True-HD ✓
IMAX Enhanced ✓
VLSC for Noise Free Signal Path Front Left / Right Channels
AccuEQ Automatic Room Calibration Advance w/AccuReflex
GAME Surround Modes (Rock, Action, Sports, Role Play) ✓
Advanced Music Optimizer to Enhance Compressed Audio Files ✓
Premium Quality Digital-to-Analog Conversion 384kHz / 32-bit AKM AK4458 Differential DAC
32-Bit DSP Chip for Advanced Processing ✓
Ultra-Low-Jitter Circuitry to Improve Audio ✓
Adjustable Crossover by Channel Pair 40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz
Accurate Speaker Distance Setting 0.1 — foot
A/V Sync Delay (by Source) -100 to +500 ms

CONNECTIVITY
HDMI Inputs / Output(s) 6 / 2
4K / 60 Hz 4:4:4 Colorspace Support ✓
HDCP 2.2 Copy-Protection Compatibility ✓
Dolby Vision, HDR10 Support ✓
HLG (Hybrid Log Gamma), WCG (Wide Color Gamut) Support ✓
HDMI Support for BT.2020 ✓
HDMI Support for 3D, Audio Return Channel and CEC ✓
HDMI Support for Deep Color, x.v.Color, LipSync ✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM ✓
1080p to 4K video upscaling via HDMI ✓
Front Panel HDMI Input ✓
Analog to HDMI Upconversion From 480i / 480p
Component Video Inputs 1
Composite Video Inputs 2
Digital Audio Inputs (COAX / OPT) 1 / 1
Analog Audio Inputs 6
Phono Input ✓
Front Panel A/V Input ✓
Subwoofer Outputs 2

NETWORK / USB
Works with Sonos ✓ (requires Sonos Connect)
Google Chromecast built-in ✓
Google Assistant (Voice Control) X
FlareConnect Wireless Mult-Room Audio Streaming Technlogy ✓
DTS Play-Fi ✓
DTS Play-Fi App for iOS and Android Integra Music Control
App Control via iOS and Android-Powered Devices Integra Control Pro
Apple Airplay & Airplay 2 ✓
iPod / iPhone / iPad Ready ✓
Home Network Music Streaming ✓
TIDAL High Fidelity Music Streaming ✓
Amazon Music ✓ (accessible via Integra Music Control app)
Pandora ✓
Spotify ✓
Spotify Connect ✓
TuneIn Radio ✓
Deezer ✓
DSD Support 2.8, 5.6 MHz
Dolby TrueHD Support ✓
Apple Losless (ALAC) Support ✓
WAV Support ✓
AIFF Support ✓
DSDIFF Support ✓
FLAC Support ✓
MP3 Support ✓
USB Input for Streaming Audio ✓
WiFi Certified IEEE 802.11 a/b/g/n, 5 Ghz / 2.4 Ghz
Bluetooth ✓
Firmware Updates via Network and USB ✓

MULTIZONE
Powered Zone 2 ✓
Zone 2 Pre-/Line-out/ Zone B Line-out ✓
Zone 2 Video Output HDMI (Inputs 1-3)
Zone 2 Audio DAC HDMI (Inputs 1-3, PCM signals only)
Zone 3 Audio DAC Supports analog/NET/Bluetooth
Remote Play Zone- Selectable Airplay, Spotify, Connect

INTEGRATION ACCESS
Bi-directional RS-232 Control Port ✓
Bi-directional Ethernet Control Port ✓
Rear Panel IR Input / Output 2 / 1
RIHD (Remote Interactive over HDMI) ✓
12V Trigger (with Adjustable delay) x3, Assignable

MISCELLANEOUS
GUI for Setup Menu ✓ (Advanced HD)
Quick Setup Menu ✓
Input Name Edit Fully Customizable
HDMI Standby «Through» Mode Assignable
Dealer Settings Memory Store & Recall Function ✓
Screensaver Function ✓ (Advanced)
Hybrid Standby to Reduce Power Consumption ✓
Smart Grid Ready ✓
Anti-Resonant Aluminum Front Panel ✓
Gold-Plated RCA Terminals ✓
Oversized Detachable AC Cord ✓
Rack Mount Kit Available IRK-155-3D

AMPLIFIER SECTION
Power Output (8 Ω, 20 Hz-20 kHz, FTC) 90W / Channel (8 Ω)
Dynamic Power 240W / Channel (3 Ω Front), 210W / Channel (4 Ω Front), 120W / Channel (8 Ω Front)
THD (Total Harmonic Distortion + Noise) 0.08% (20 Hz-20 kHz)
Input Sensitivity and Impedance 200 mV / 47 k-Ohms (Line / Unbalance), 3.5 mV / 47 k-Ohms (Phono MM)
Rated RCA Output Level and Impedance 1 V / 200 mV / 470 Ohms (Zone 2 Pre / Line Out/ Zone B Line Out), 1 V / 470 Ohms (Subwoofer Pre Out)
Phono Overload 70 mV (MM 1 kHz, 0.5%)
Frequency Response 5 Hz — 100 kHz / +1 dB-3 dB (Direct Mode)
Tone Control ±10dB, 20 Hz (Bass), ±10dB, 20 kHz (Treble)
Signal-to-Noise Ratio 106 dB (Line, IHF-A)
80 dB (Phono)
Speaker Impedance 4 Ω — 16 Ω

VIDEO SECTION
Input Sensitivity / Output Level and Impedance 1.0 Vp-p / 75 Ω (Component Y), 0.7 Vp-p / 75 Ω (Component Pb/Cb, Pr/Cr), 1.0 Vp-p / 75 Ω (Composite)

TUNER SECTION
Tuning Frequency Range FM 87.5 MHz — 107.9 MHz, AM 530 kHz — 1,710 kHz
FM / AM Preset Memory 40 Stations

GENERAL
Power Supply AC 220 V, 50 Hz
Power Consumption 740 W
Stand-by Power Consumption 0.15 W
