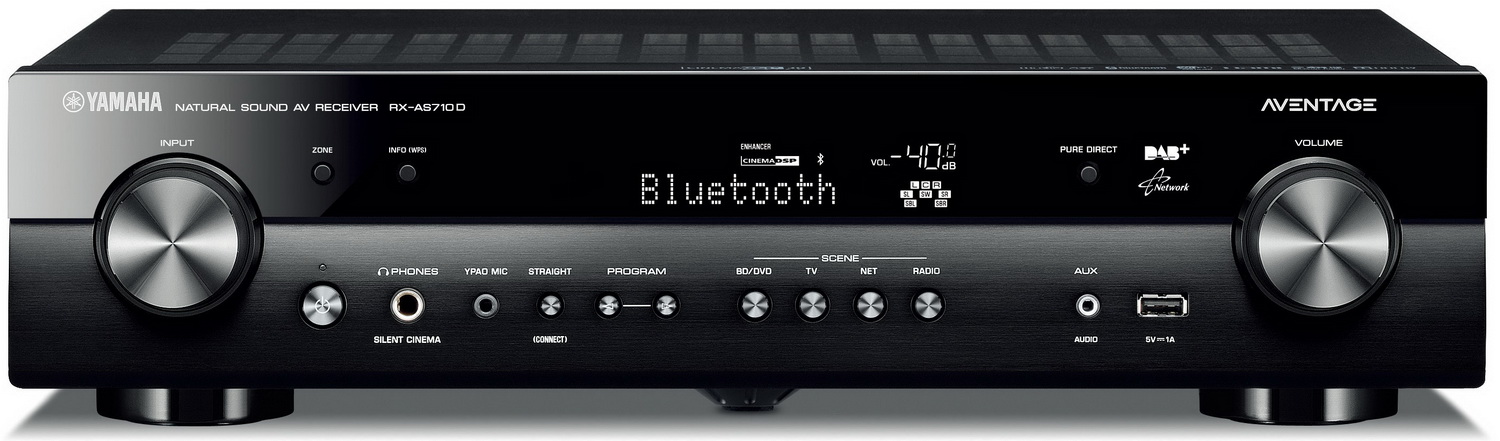

Yamaha RX-AS710D

Описание Yamaha RX-AS710D

AV-ресивер 7.2 в slim-корпусе, Wi-Fi, AirPlay, Bluetooth, MusicCast

Секция усилителя

Channel 7.2
Rated Output Power (1kHz, 1ch driven) 100 W (8ohms, 10% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 60 W (8ohms, 0.07% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 130W (4ohms, 0.9% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 90 / 110 / 140 / 160 W

Обработка окружающего звучания

CINEMA DSP Yes (3D)
DSP Programs 17
Virtual Presence Speaker Yes
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby TrueHD Yes
Dolby Digital Plus Yes
DTS-HD Master Audio Yes

Обработка аудиосигнала

Pure Direct Yes
Compressed Music Enhancer Yes (incl. enhancer for Bluetooth)
YPAO sound optimization Yes
YPAO multi-point measurement Yes
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)

Обработка видеосигнала

4K Ultra HD Pass-through and upscaling Yes (4K60p 4:4:4)
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes

Коммутация

HDMI Input/Output 6 (HDMI1,2,3: HDCP2.2 compatible) / 1 (HDCP2.2 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input iPod / iPhone, USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (with Wireless Direct)
AirPlay Yes
Bluetooth Yes (SBC/AAC)
Front AV Input USB / Mini Jack
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 4 / 0
Phono Input Yes
Component Video Input/Output 2 / 0
Composite Video Input/Output 2 / 0
Preout Subwoofer
Headphone Output 1

Секция тюнера

FM/AM Tuner Yes (FM only)
DAB Tuner Yes

Интерфейс пользователя

On-screen display Graphical User Inter face
SCENE SCENE (4 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)

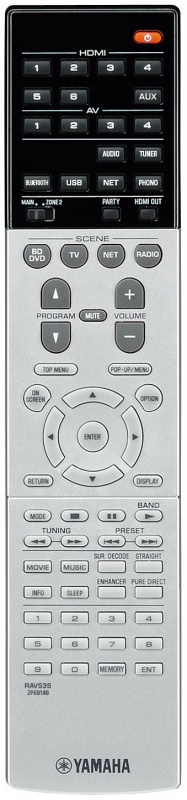

Remote Control Unit Yes

Управление зонами

Zone 2 Audio Output 1
Powered Zone Zone 2
+12V Trigger Output 1
Remote (IR) Input/Output 1 / 1

Общие характеристики

Standby Power Consumption (IR only) ≤0.1W
Auto Power Standby Yes
ECO mode Yes
