Yamaha RX-A1070

Описание Yamaha RX-A1070

AV-ресивер

Amplifier Section

Channel 7.2
Rated Output Power (1kHz, 1ch driven) 170 W (4 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 110 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 165 W (8 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 135 / 165 / 210 / 280 W

Surround Sound Processing

CINEMA DSP Yes (HD3)
DSP Programs 24
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Atmos Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes

Audio Features

Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control) and 64-bit Precision EQ Calculation
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (ESS)

Video Features

4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (Analogue to HDMI® / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes

Connectivity

HDMI Input/Output 8 / 2 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC Yes (SCENE, Device Control)
USB Input USB Memory, Portable Audio Player
Network Port Yes
Wi-Fi Yes (with Wireless Direct)
AirPlay Yes
Bluetooth Yes (SBC / AAC)
Front AV Input HDMI / USB / Analogue Audio
Digital Audio Input/Output: Optical 3 / 0
Digital Audio Input/Output: Coaxial 3 / 0
Analog Audio Input/Output 9 (front 1) / 0
Phono Input Yes
Component Video Input/Output 2 / 0
Composite Video Input/Output 4 / 0
Preout 7.2-ch
Headphone Output 1

Tuner Section

FM/AM Tuner Yes (FM only)
DAB Tuner Yes

User Interface

On-screen display Graphical User Interface
SCENE SCENE PLUS (12 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes

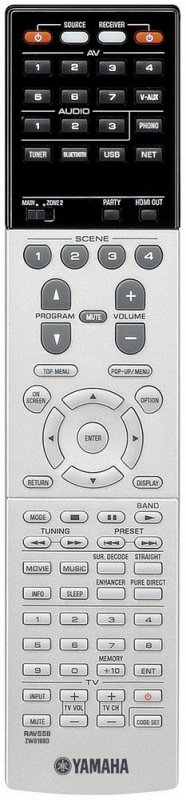

Remote Control Unit Yes (Preset)

Zone Control

Zone 2 Audio Output Preout / HDMI
Powered Zone Zone 2
Zone Video Output HDMI / Component / Composite
Zone HDMI Yes (HDMI Zone Switching)
Zone B Output HDMI
RS-232C Interface Yes
+12V Trigger Output 2
Remote (IR) Input/Output 1 / 1
Party Mode Yes

General

Standby Power Consumption (IR only) ≤0.1W
Auto Power Standby Yes
ECO mode Yes
