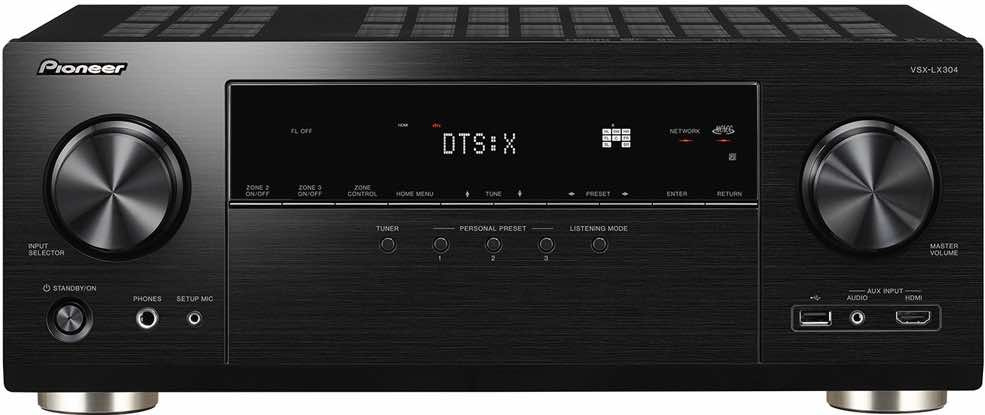

Pioneer VSX-LX304

Описание Pioneer VSX-LX304

AV-ресивер 9.2 c 4K, 3D, Wi-Fi, AirPlay 2, Bluetooth, Sonos.

АУДИОХАРАКТЕРИСТИКИ

Channels: 9
Amplification Type: Direct Energy
185 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
170 W/ch (8 ohms,1 kHz, THD 1 %, 1ch Driven IEC)
IMAX Enhanced*1
Dolby Atmos, Dolby Surround Upmixer, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos Height Virtualizer*1
DTS:X, DTS Neural:X Upmixer, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
Reflex Optimizer
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)
384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
Audio Return Channel (ARC) on HDMI
Advanced MCACC Auto Room Tuning: Auto Phase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
Advanced Sound Retriever (2ch)
Advanced Surround Modes: Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance

ВИДЕОХАРАКТЕРИСТИКИ

Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)*2
HDR10, HLG and BT.2020 Compliant Wide Colour Gamut Signal Pass-through
Dolby Vision™ Compatible
Ultra HD Upscaling (1080p to 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”

СЕТЕВЫЕ ФУНКЦИИ

FlareConnect™ for Multi-room Audio

Chromecast built-in*3 and Works with the Google Assistant
DTS Play-Fi with Pioneer Music Control App
Apple AirPlay 2
Works with SONOS
Amazon Music, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready*4
Internet Radio with TuneIn
Hi-Res Audio File Playback via USB/Network: Up to 192 kHz/24-bit ALAC*5, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD*6

ОСОБЕННОСТИ СИСТЕМЫ

Personal Preset
Dialog Enhancement
Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi® Built-in
Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
Pioneer Remote App*7 Ready for Multi-room Entertainment Control and Network Streaming
User-Friendly GUI with System Setup Menu
On-Screen Information for Audio/Video Status
Auto Power Off in HDMI Standby Through
AM/FM Tuner 40 Presets
Sleep Timer
User-Friendly Simple Remote Control

РАЗЪЕМЫ

FRONT TERMINALS:

HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In (Gold-Plated)
Audio 1 In (Mini Stereo Jack, Gold-Plated)
Phones 1 Out

REAR TERMINALS:

HDMI 6 In (4 Assignable)
HDMI 2 Out (1 for MAIN, 1 for SUB)
Ethernet 1 In
USB 1 In for USB Drive
Audio 4 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Subwoofer 2 Pre Out
ZONE B Line Out for Wireless Headphones
ZONE 2 Pre/Line Out
Speaker 9ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP/ZONE 2, SURROUND BACK/HEIGHT 2/ZONE 3)
IR 1 In/1 Out
12 V Trigger 2 Out
RS-232C
FM/AM Antenna

*1 Available with future firmware update
*2 Except AUX INPUT (Front)
*3 Chromecast-enabled apps required
*4 Service availability depends on country or region
*5 Up to 96 kHz supported via wireless LAN
*6 Not guaranteed via wireless LAN
*7 Available for free download from the App Store/The Google Play
