Onkyo TX-RZ830

Описание Onkyo TX-RZ830

9.2-канальный сетевой AV-ресивер 4K. Мощность 180 Вт (6 Ом). Wi-Fi, Bluetooth, AirPlay. DTS:X, Dolby Atmos Up to 5.2.4. THX Certified Select

ADVANCED FEATURES

THX Certified Select cinema-reference volume and sound quality
HDMI supports HDR10, HLG, Dolby Vision, BT.2020, and 4K/60 Hz pass-through and HDCP 2.2
Dolby Atmos and DTS:X playback through 5.2.4 or 7.2.2 channels
11.2 multichannel pre-outs and processing for 7.2.4-ch playback with an external stereo power amp
Powered ZONE 2 and powered ZONE 3 speaker outputs, Zone 2 and Zone 3 pre-/line-level outputs with DACs for digital*4 and analog audio playback
Cross-compatible upmixing for Dolby® and DTS® soundtracks with Dolby Surround and DTS Neural:X™ solutions
AccuEQ Advance room-acoustic calibration with standing wave correction and AccuReflex™ phase-alignment for Dolby Atmos-enabled speakers
Stable 5 GHz/2.4 GHz Wi-Fi connectivity
Easy multi-room management with Onkyo Controller app*5
Audio streaming with Chromecast built-in and voice control through devices with the Google Assistant built-in
DTS Play-Fi multi-room audio distribution technology via Onkyo Music Control App*5
FlareConnect multi-room audio distribution to compatible components
Supports audio streaming from iPad, iPhone, Mac, and iTunes via AirPlay
Amazon Music, Spotify, TIDAL, and Deezer music streaming services and TuneIn internet radio
Hi-Res Audio playback including DSD 11.2/5.6/2.8 MHz*6, 192 kHz/24-bit FLAC*7, WAV (RIFF)*7, AIFF, ALAC*7, and Dolby® TrueHD*8
Bluetooth® wireless audio technology for mobile, laptop, and PC (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
Advanced Music Optimizer improves compressed digital audio quality (Bluetooth audio included)
Built-in low-noise phono pre-amp for Moving Magnet (MM) cartridges
Supports Front L/R bi-amping
480i de-interlacing (480i to 480p) via HDMI for legacy video formats

AMPLIFICATION FEATURES

180 W/Ch (6 Ω, 1 kHz, 1% THD, 1 channel driven, IEC)
Onkyo high-current digital Dynamic Audio Amplification system
5 Hz–100 kHz reproduction and high power to drive 4-ohm speakers
H.C.P.S. (High Current Power Supply) customized transformer
Extra-large customized block capacitors for instant power
VLSC (Vector Linear Shaping Circuitry) high-frequency noise removal technology (Front L/R channels)
Non-phase-shift amp circuitry for a clear and cohesive audio image
Discrete output stage circuitry for low distortion

PROCESSING FEATURES

Dolby Atmos and DTS:X reproduction through 5.2.4-ch or 7.2.2-ch (7.2.4-ch with external stereo power amp)
HDMI support for 4K/60 Hz, HDR10, HLG, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD® Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), multichannel PCM, and CEC
Precision AKM (AK4458) 384 kHz/32-bit multichannel DAC
PLL (Phase Locked Loop) jitter-cleaning technology for S/PDIF audio
32-bit Digital Signal Processing (DSP)
Pristine reproduction of audio-only sources in Pure Audio Mode
Listening modes for gaming (Rock, Sports, Action, and RPG)
Theater-Dimensional virtual surround-sound function
Direct Mode for audio reproduction close to original source quality
Independent tone controls (bass/treble) for all channels

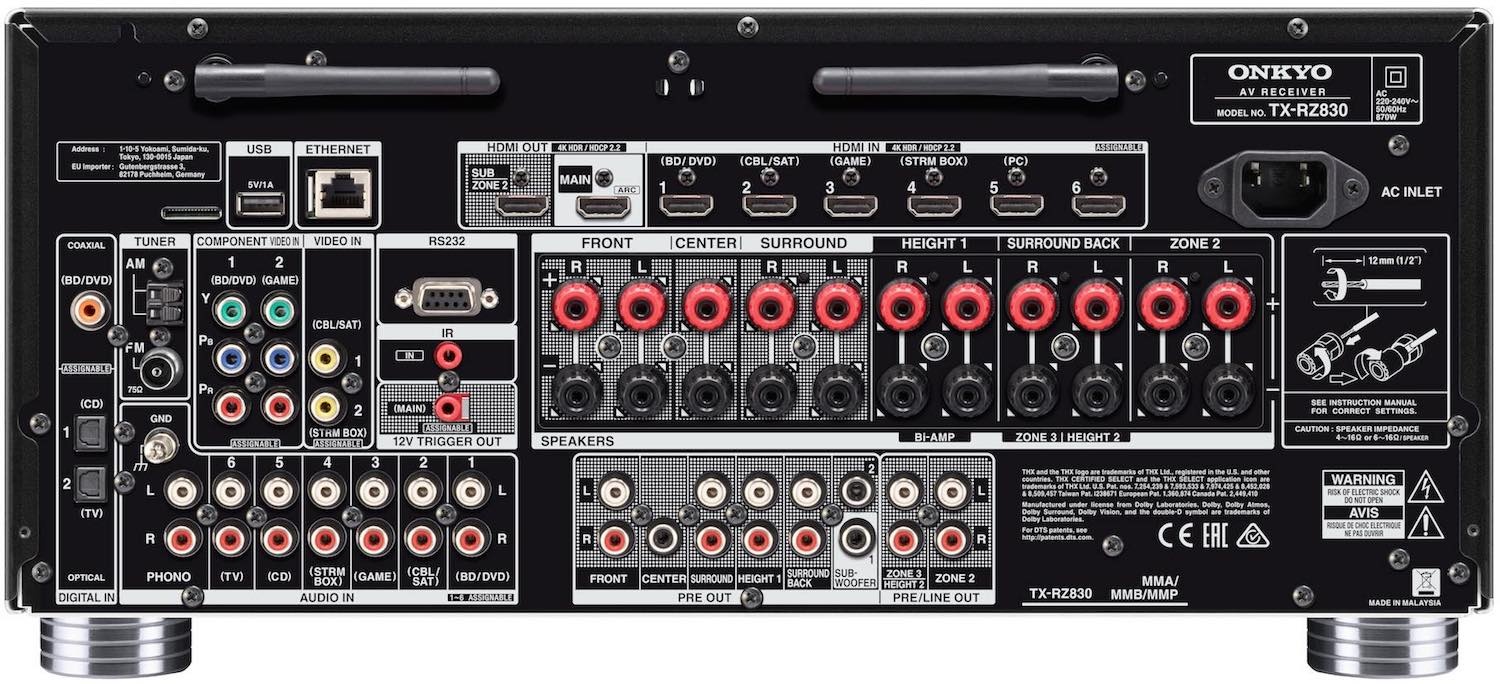

CONNECTION FEATURES

7 HDMI inputs (1 Front), Main Out, and Sub/Zone 2 Out
Powered USB terminal (5 V, 1 A) for audio playback (rear)
2 composite video inputs and 2 component video inputs
3 digital audio inputs (2 optical and 1 coaxial)
6 analog audio inputs, 1 stereo 3.5 mm analog input (front)
Phono input (MM) and equalizer for turntable connection
11.2 multichannel pre-outs
2 subwoofer pre-outs
6.35 mm headphone jack (front)
Speaker setup mic input (front)
12 V trigger output, IR input, IP control, and RS232 support
Detachable power cable

OTHER FEATURES

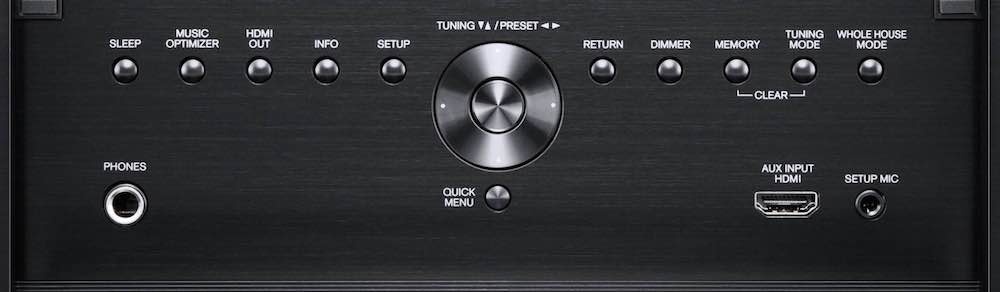

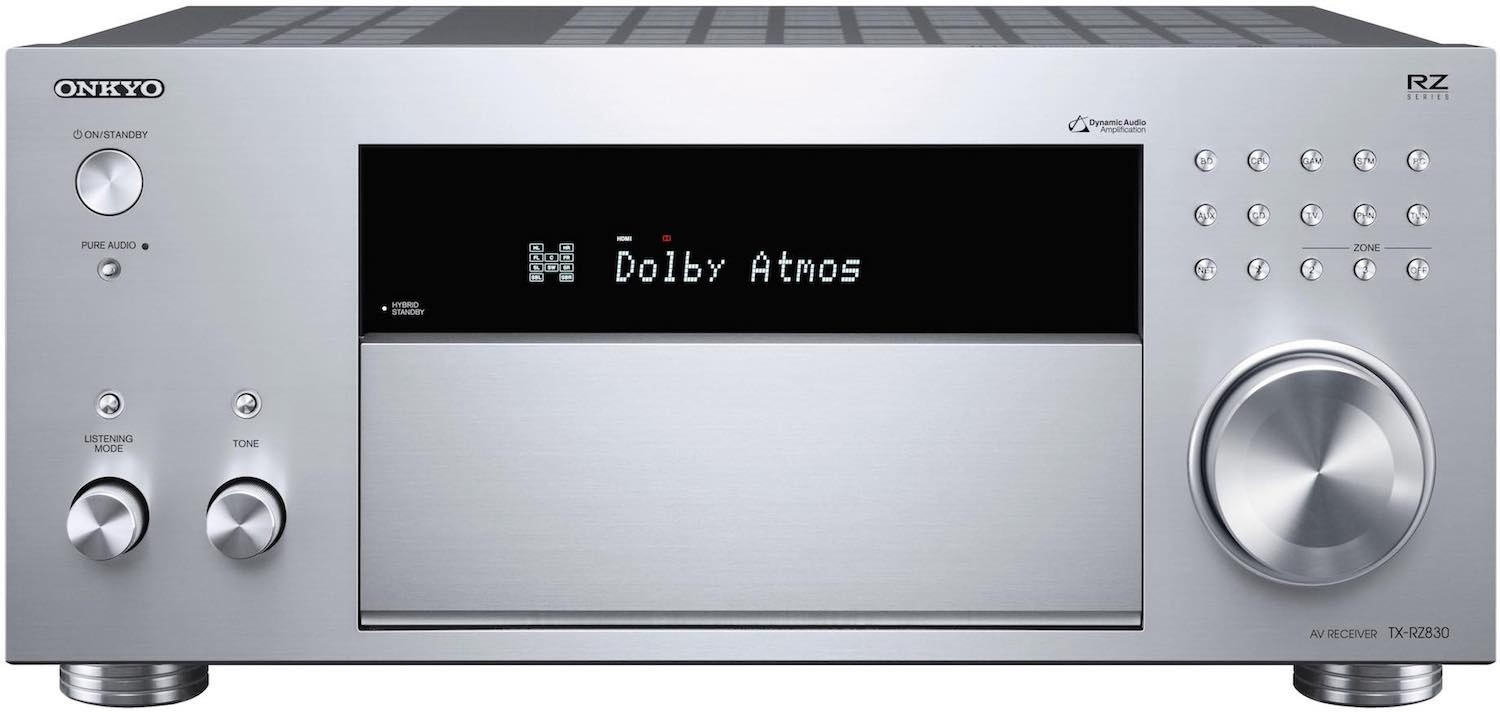

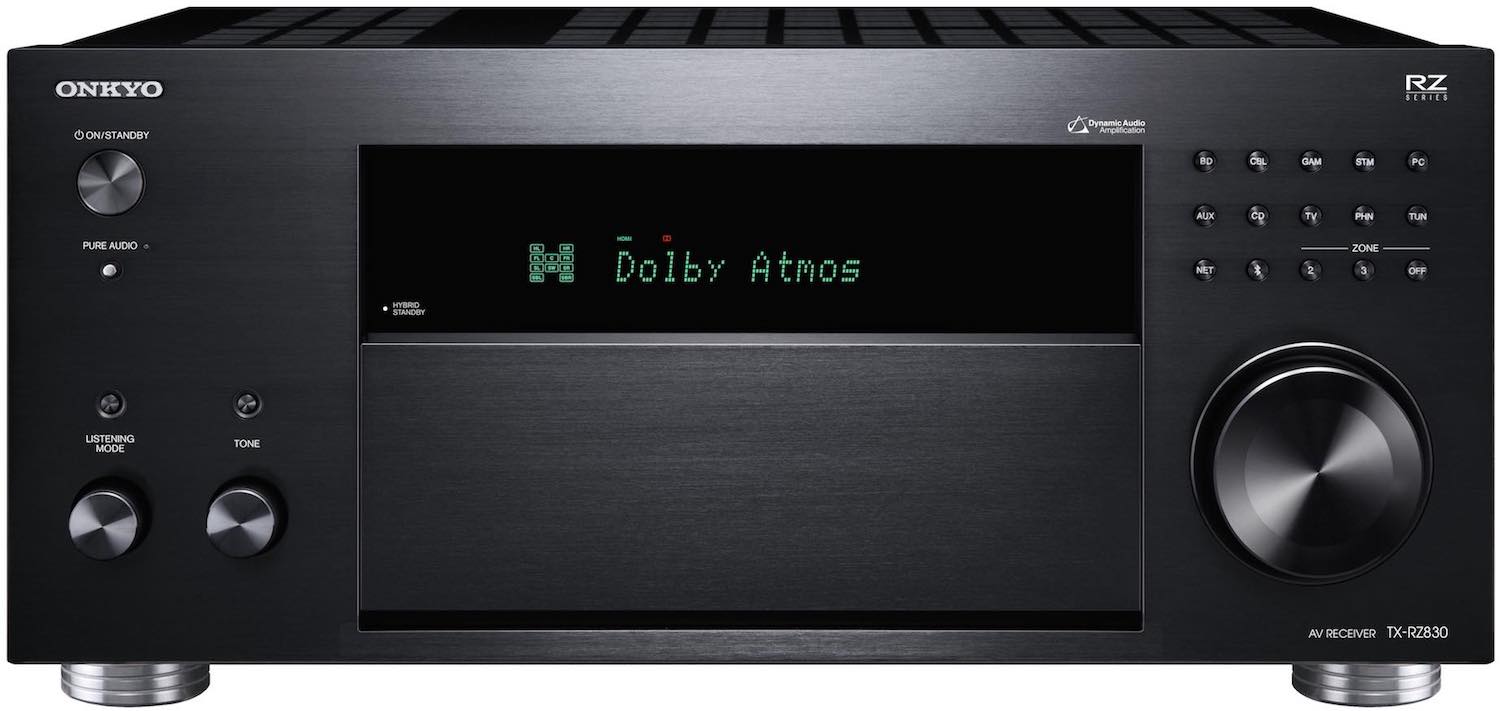

Aluminum front panel, flap door, and volume control
Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
Graphical User Interface with overlaid On-Screen Display via HDMI
Quick Setup Guide via GUI
Economical HDMI pass-through and Network Standby functions
3-mode display dimmer (Normal/Dim/Dimmer)
40 FM/AM random presets

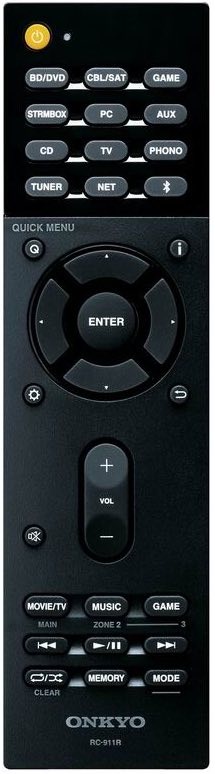

Simple remote control
Rack-mounting kit (optional IRK-180-4C)

*1 Front HDMI input does not support 4K/60Hz/RGB/4:4:4/4:2:2.

*2 Sub/Zone 2 HDMI does not support ARC or CEC.

*3 Availability of services may vary with region. Subscription may also be required.

*4 Audio via HDMI inputs and S/PDIF audio not supported in Zone 3.

*5 Visit App Store or the Google Play Store to check device and OS requirements and download free.

*6 DSD 11.2 MHz playback is native. DSD 5.6/2.8 MHz is converted to PCM before playback. Playback not guaranteed via wireless LAN.

*7 Playback not guaranteed via wireless LAN. Supported sampling rate via wireless LAN depends on network environment.

*8 Playback not guaranteed via wireless LAN.
