Marantz SR5011

Описание Marantz SR5011

AV-ресивер, 7.2, сетевой.

Multichannel Surround

DTS HD Master / DTS:X o / o (update)
DTS Neo:X / DTS Neural:X — / o (update)
Dolby TrueHD / Dolby Atmos o / o
Dolby ProLogic IIz / Dolby Surround — / o
Multichannel Stereo o
max. number of processing (preamp) channels 7.1

Sound Enhancements

Discrete Power Amplifier 7
Chassis: Copper plated / Metal — / o
Power Transformer: Toroidal / EI EI
Current Feedback Topology o
Hyper Dynamic Amplifier Modules (HDAM) o
Pure Direct o
High Grade Audio Components o
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume o / o
Audyssey APP support o
Compressed audio Enhancer: MDAX2 o

Network

Network Audio Streaming o
Lossy formats MP3 / WMA / AAC o / o / o
Lossless formats FLAC / ALAC / WAV o / o / o
FLAC HD 192/24 o
WAV 192/24 o
ALAC 96/24 o
DSD Audio Streaming up to DSD5.6
Gapless playback o (FLAC, WAV, AIFF, ALAC DSD)
AirPlay audio streaming o
Compatible with Remote APP for Smart Phones Android/iOS
Compatible with Remote APP for Tablets Android/iOS/Amazon Kindle
Ethernet o
Spotify Connect* / Tidal* / Deezer* / others * o / — / — / -
WiFi o
Bluetooth o

HDMI

HDMI inputs back / front 7 / 1
HDCP2.2 support o
HDMI outputs main / zone 2 / -
Video conversion Analog -> HDMI o
Analogue to HDMI scaling up to 4k 30/25/24Hz
HDMI to HDMI scaling up to 4k 30/25/24Hz
GUI Overlay on HDMI o
HDMI 3D / 4K / CEC / ARC / InstaPrevue o / o / o / o /-
3D signal pass-through o
4k signal pass-through / scaling / GUI overlay o / o / o
HDMI pass-though in standby mode o
Picture adjust / Noise reduction o / o
CEC o
Audio Return Channel o
Auto LipSync o

MULTIROOM / CI

Multiroom zones 2
Zone audio source: HDMI / opt, coax / Network, USB / analog — / — / o / o
Zone audio output: speaker / preout o / o
IP control / RS232 control / Web control / App control o / o / o / o
IR Flasher In o
Marantz remote bus o
DC Trigger output 1

Others

Auto speaker setup by microphone Audyssey MultEQ XT
FL Display port hole
Graphic User Interface — GUI Advanced
ISF certification o
GUI languages 9
Setup Assistent o
Smart Select o
Firmware Update by Network / USB o / o
Variable cross over o
Optimized Bass Redirection o
ECO Mode o
Auto Power off o
Sleep Timer o

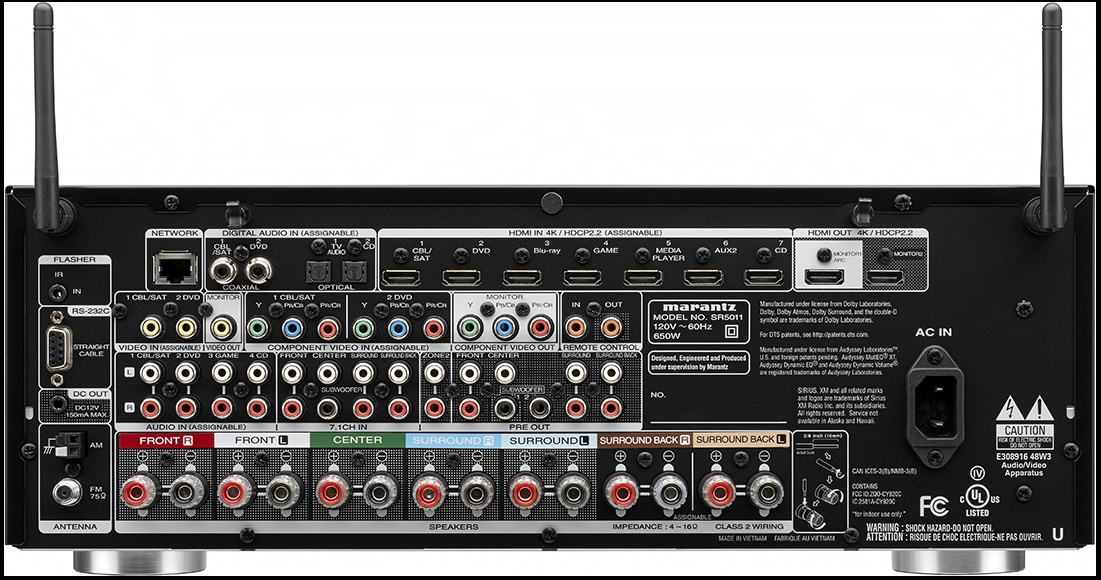

Inputs/Outputs

Composite In / Out 2+1 / 1
Component In / Out 2 / 1
HDMI In / Out 7+1 / 1
Analogue In / Out 4+1 / -
Digital Inputs: Coaxial / Optical 2 / 2
Multi-Room Out: analog / digital 1 / -
Multichannel Pre Out o (7.2)
Subwoofer Out 2
7.1 multichannel input o
Speaker Terminal: Gold plated screw / regular screw — / o
Number of speaker terminals 7
Speaker A/B / Bi-amp drive / Multi-Room Speaker assignable
Speaker A / B assignable
Bi-amp drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB o / o / — / o / o
USB Audio / Made for iPod / Works with iPhone o / o / o
FM Tuner with RDS o

Specifications

number of poweramps 7
Power Output (8 ohm, 20 Hz — 20 kHz, 0.08% 2ch Drive) 100 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 180 W
70% Guarantee o

General

System Remote Control RC024SR
Power Consumption in W 650 W
Power consumption No-Sound (ECO on / off) in W 45 W / 75 W
Standby Consumption in W 0.2 W
CEC Standby Consumption in W 0.5 W
Network Standby Consumption in W 2.7 W
