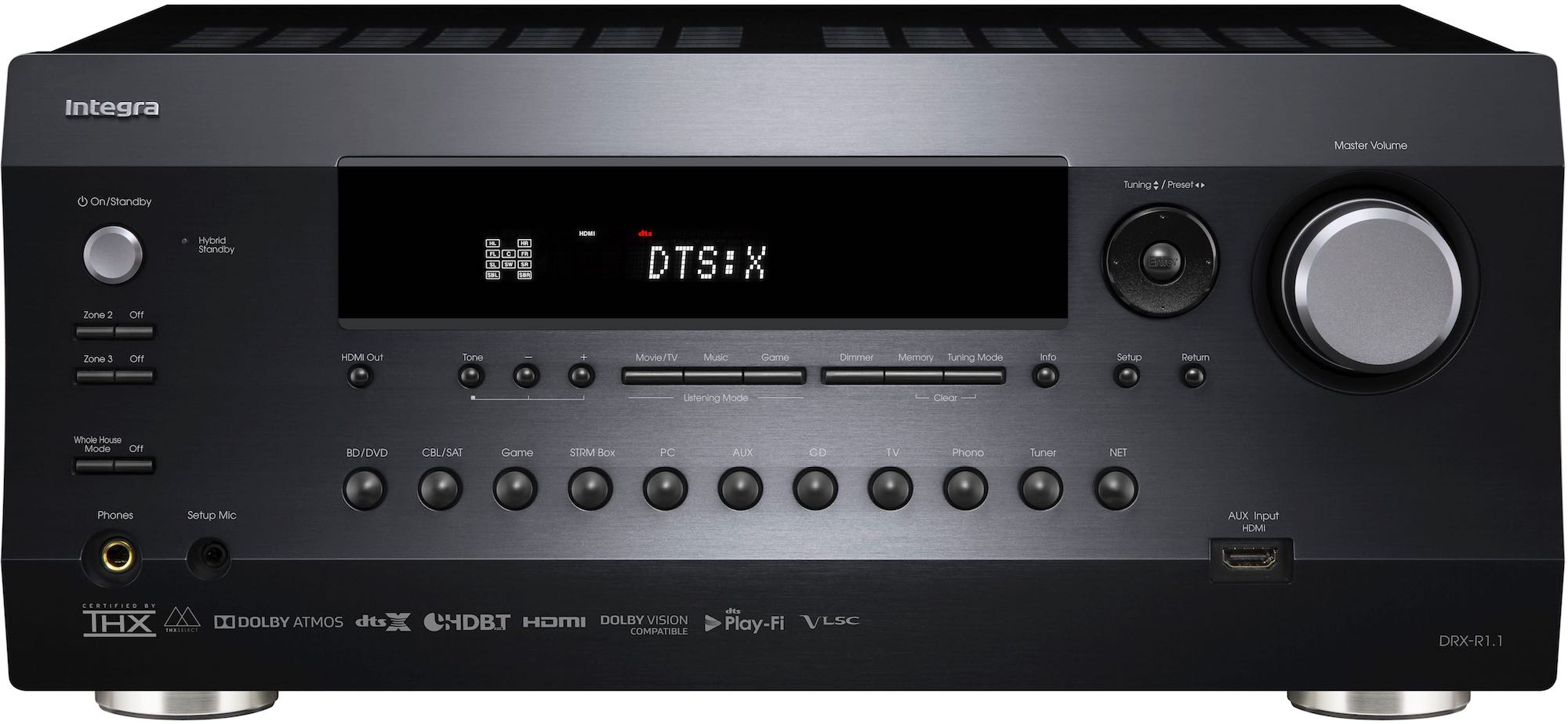

Integra DRX-R1.1

Описание Integra DRX-R1.1

AV-ресивер 11.2 с AirPlay 2. Сертификация THX Select.

AMPLIFIER
Channels 11.2
Power (8 Ω 20-20kHz 0.08%) / CH 140
Amplifier Frequency Response 5Hz — 100kHz
Wide Range, High Current Power Supply Natural Harmonics Technology, Massive High-Power Transformer
High Instantaneous Current Capability 40 Amps, 1kHz, 00.1 Ω Pulse
THX Certified ✓
Continuous 6 Ω Rated ✓
Low Impedance Drive- Certified 4 Ω ✓
Hand Selected Parts to Ensure Low Impedance Performance Custom- Audio Tuned
Discrete Output Stages for All Channels ✓
All Channels Equal Power Output ✓
Hybrid, High-Current Digital Amplification ✓
Separate Digital and Analog Circuitry to Reduce Interference ✓
Independent Power Supply 2
Bi-amp Capability — Front L/R Channels ✓

PROCESSING
Dolby Atmos and Dolby Surround ✓
Dolby TrueHD ✓
DTS:X and DTS Neural:X ✓
DTS-HD Master Audio ✓
THX Processing Modes & Loudness Plus ✓
VLSC for Noise Free Signal Path All Channels
AccuEQ Automatic Room Calibration Advanced (Fine Tuned) w/AccuReflex
GAME Surround Modes (Rock, Action, Sports, Role Play) ✓
Advanced Music Optimizer to Enhance Compressed Audio Files ✓
Standing Wave EQ User Defined (x3)
Premium Quality Digital-to-Analog Conversion 384k / 32-bit AKM4490 Differential DAC (Front L/R)
768k / 32-bit AKM4458 Differential DAC (x2, Surround Channels)
32-Bit DSP Chip for Advanced Processing Analog Devices SHARC (x3)
Ultra-Low-Jitter Circuitry to Improve Audio ✓
Adjustable Crossover by Channel Pair 40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz
Accurate Speaker Distance Setting 0.1 — foot
A/V Sync Delay (by Source) -100 to +500 ms

CONNECTIVITY
HDMI Inputs / Output(s) 8 / 2
4K / 60 Hz 4:4:4 Colorspace Support ✓
Dolby Vision Support ✓
HDCP 2.2 Copy-Protection Compatibility ✓
HLG (Hybrid Log Gamma), HDR10, WCG (Wide Color Gamut) Support ✓
HDMI Support for BT.2020 ✓
HDMI Support for 3D, Audio Return Channel and CEC ✓
HDMI Support for Deep Color, x.v.Color, LipSync ✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM ✓
Front Panel HDMI Input ✓
HDBaseT Output ✓
Analog to HDMI Upconversion From 480i / 576i
Component Video Inputs 2
Composite Video Inputs 2
Digital Audio Inputs (COAX / OPT) 2 / 3
Analog Audio Inputs 7
Phono Input ✓
Front Panel A/V Input ✓
Analog Pre-outs 11.2
Subwoofer Outputs 2 (Discrete)

NETWORK / USB
Google Chromecast built-in ✓
Google Assistant (Voice Control) ✓
FlareConnect Wireless Multi-Room Audio Streaming Technology ✓
DST Play-Fi ✓
DTS Play-Fi App for iOS and Android Integra Music Control
App Control via iOS and Android-Powered Devices Integra Control Pro
Apple Airplay ✓
iPod / iPhone / iPad Ready ✓
Home Network Music Streaming ✓
TIDAL High Fidelity Music Streaming ✓
Pandora ✓
Spotify ✓
Spotify Connect ✓
TuneIn Radio ✓
Deezer ✓
DSD Support (2.8, 5.6, 11.2 MHz) 2.8, 5.6, 11.2 MHz
Dolby TrueHD Support ✓
Apple Lossless (ALAC) Support ✓
WAV Support ✓
AIFF Support ✓
DSDIFF Support ✓
FLAC Support ✓
MP3 Support ✓
USB Input for Streaming Audio ✓
Firmware Updates via Network and USB ✓

MULTIZONE
Powered Zone 2 ✓
Powered Zone 3 ✓
Fixed or Variable Zone 2 Line Out ✓
Fixed or Variable Zone 3 Line Out ✓
Zone 2 Video Output HDMI
Zone 2 OSD ✓
Zone 2 Audio DAC HDMI (1-5), Coax, Optical, NET, USB
Zone 3 Audio DAC NET, USB
Whole House Mode HDMI (1-5), Coax, Optical, NET, USB, Analog
Remote Play Zone- Selectable Airplay, Spotify Connect

INTEGRATION ACCESS
Bi-directional RS-232 Control Port ✓
Bi-directional Ethernet Control Port ✓
Rear Panel IR Input / Output 2 / 1
RIHD (Remote Interactive over HDMI) ✓
12V Trigger (with Adjustable delay) x3, Assignable

MISCELLANEOUS
Research Grade Construction Internal Cross Bracing (x2), Power Supply Shielding (x2), Copper Screws (Rear & Internal), R Grade Power Supply, Transparent Binding Posts
GUI for Setup Menu ✓ (Advanced HD)
Quick Setup Menu ✓
Input Name Edit Fully Customizable
HDMI Standby «Through» Mode Assignable
Dealer Settings Memory Store & Recall Function ✓
Screensaver Function ✓ (Advanced)
Hybrid Standby to Reduce Power Consumption ✓
Smart Grid Ready ✓
Anti-Resonant Aluminum Front Panel ✓
Gold-Plated RCA Terminals ✓
Oversized Detachable AC Cord ✓
Rack Mount Kit Available IRK-180-4C

AMPLIFIER SECTION
Power Output (8 Ω, 20 Hz-20 kHz, FTC) 140W / Channel (8 Ω)
Dynamic Power 320W / Channel (3 Ω), 270W / Channel (4 Ω), 160W / Channel (8 Ω)
THD (Total Harmonic Distortion + Noise) 0.04% (1 kHz, 100W)
Input Sensitivity and Impedance 200 mV / 82 k-Ω (LINE), 3.5 mV / 47 k-Ω (Phono MM)
Rated RCA Output Level and Impedance 1 V / 330 Ω (Pre Out, Subwoofer Pre Out), 200 mV / 1.2 k-Ω (Zone Out), 2.0 V / 1.2 k-Ω (Zone Pre Out)
Phono Overload 70 mV (MM 1 kHz, 0.5%)
Frequency Response 5 Hz — 100 kHz / +1 dB-3 dB (Direct Mode)
Tone Control ±10dB, 100 Hz (Bass), ±10dB, 10 kHz (Treble)
Signal-to-Noise Ratio 108 dB (Line, IHF-A), 90 dB (Phono)
Speaker Impedance 4 Ω — 16 Ω

VIDEO SECTION
Signal Level Video: 1.0 Vp-p / 75 Ω (Composite / Component Y), 0.7 Vp-p / 75 Ω (Component Pb / Pr)

TUNER SECTION
Tuning Frequency Range FM 87.5 MHz — 107.9 MHz, AM 530 kHz — 1,710 kHz
FM / AM Preset Memory 40 Stations

GENERAL
Power Supply AC 220 V, 50 Hz
Power Consumption 360 W
Stand-by Power Consumption 0.1 W
