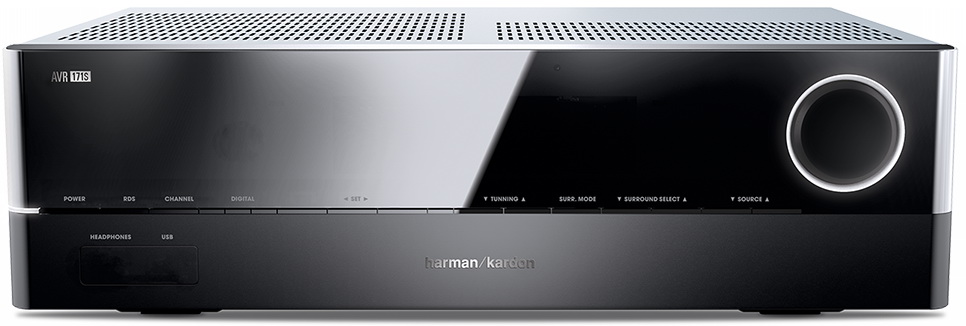

Harman/Kardon AVR 171S
Внимание!
Данная модель снята с производства. Обратитесь в онлайн консультант
для подбора аналога
Варианты оплаты заказа:
Варианты доставки:
- самовывоз
- Курьером
| Характеристики | |
|---|---|
| Важно! | Возможна предоплата |
| Единицы измерения | шт. |
| Высота | 121 мм |
| Ширина | 440 мм |
| Глубина | 300 мм |
| Вес | 5,1 кг |
Описание Harman/Kardon AVR 171S
AV-ресивер 7.2, сетевой, 4K, 3D. Мощность 100 Вт. HDMI 2.0, Bluetooth, AirPlay, Dolby TrueHD и DTS-HD Master Audio
Audio Section
• Stereo power: 100 watts per channel, two channels driven @ 6/8 ohms, 20Hz – 20kHz, <0.07% THD
• Multichannel power: 100 watts per channel, two channels driven @ 6/8 ohms, 20Hz – 20kHz, <0.07% THD
• Input sensitivity/impedance: 250mV/27k ohms
• Signal-to-noise ratio (IHF-A): 100dB
• Surround-system adjacent channel separation: • Dolby Pro Logic®/DPLII: 40dB • Dolby Digital: 55dB • DTS®: 55dB
• Frequency response (@ 1W): 10Hz – 130kHz (+0dB/–3dB)
• High instantaneous-current capability (HCC): ±42 amps
• Transient intermodulation distortion (TIM): Unmeasurable
• Slew rate: 40V/sec
FM Tuner Section
• Frequency range: 87.5MHz – 108.0MHz
• Usable sensitivity IHF: 1.3μV/13.2dBf
• Signal-to-noise ratio (mono/stereo): 70dB/68dB
• Distortion (mono/stereo): 0.2%/0.3%
• Stereo separation: 40dB @ 1kHz
• Selectivity (±400kHz): 70dB
• Image rejection: 80dB
• IF rejection: 80dB
AM Tuner Section
• Frequency range: 522kHz – 1,620kHz
• Signal-to-noise ratio: 38dB
• Usable sensitivity (loop): 500μV
• Distortion (1kHz, 50% mod): 1.0%
• Selectivity (±10kHz): 30dB
Video Section
• Television format: PAL
• Input level/impedance: 1Vp-p/75 ohms
• Output level/impedance: 1Vp-p/75 ohms
• Video frequency response (composite video): 10Hz – 8MHz (–3dB)
• HDMI 2.0: Supports up to 4K x 2K
General Specifications
• Power requirement: 220V – 240V AC / 50Hz – 60Hz
• Power consumption: <0.5W (standby); 510W maximum
