Onkyo TX-8390

Описание Onkyo TX-8390

Стереоресивер сетевой с Bluetooth, Wi-Fi и AirPlay 2. Мощность: 200 Вт (6 Ом), HDMI коммутация.

AMPLIFIER FEATURES
• 200 W/Ch (6 Ω, 1 kHz, 10% THD, 2 channels driven), 180 W/Ch (6 Ω, 1 kHz, 1% THD, 2 channels driven, IEC)
• Customized High-Current Low-Noise Power Transformer
• Custom 10,000 μF high-current smoothing capacitors
• Non-phase-shift amp topology with discrete output stage
• Dual output transistors on each channel support high current delivery
• Anti-resonant extruded aluminum heat-sink with black alumite coating
• Large HDMI grounds and short signal-paths reduce noise
• AKM (AK4458) DAC supports 384 kHz/32-bit D/A conversion
• VLSC (Vector Linear Shaping Circuitry) noise-filtering
• PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
• Pure Audio Mode for flawless analog sound

VIDEO & AUDIO SUPPORT
• Supports HDCP 2.3, 4K/60p, HDR (Dolby VisionTM, HDR10, HLG), BT.2020, 4:4:4/24-bit, 3D Video, ARC (Audio Return Channel), DeepColorTM, x.v.Color, and LipSync via HDMI pass-through
• 1080p to 4K Super Resolution upscaling via HDMI
• Supports Hi-Res Audio formats including MQA*5; DSD256, DSD128, DSD64 (DSD converted to 176.4 kHz/24-bit PCM); FLAC, WAV [RIFF], AIFF to 192 kHz/24-bit; and ALAC to 96 kHz/24-bit*6

NETWORK FEATURES
• Supports multi-room streaming, internet streaming services, and Onkyo Controller*7 remote streaming app
• Works with Alexa (future firmware update required)
• Works with Sonos for the Sonos Home Sound System*8
• Chromecast built-in and voice control*9 with the Google Assistant
• AirPlay 2 multi-room audio and voice control*10 with Siri
• DTS Play-Fi multi-room audio via Onkyo Music Control App*7
• Quad-core SoC supports multiple processing functions including 802.11ac (2x2 MIMO) 5 GHz/2.4 GHz Wi-Fi

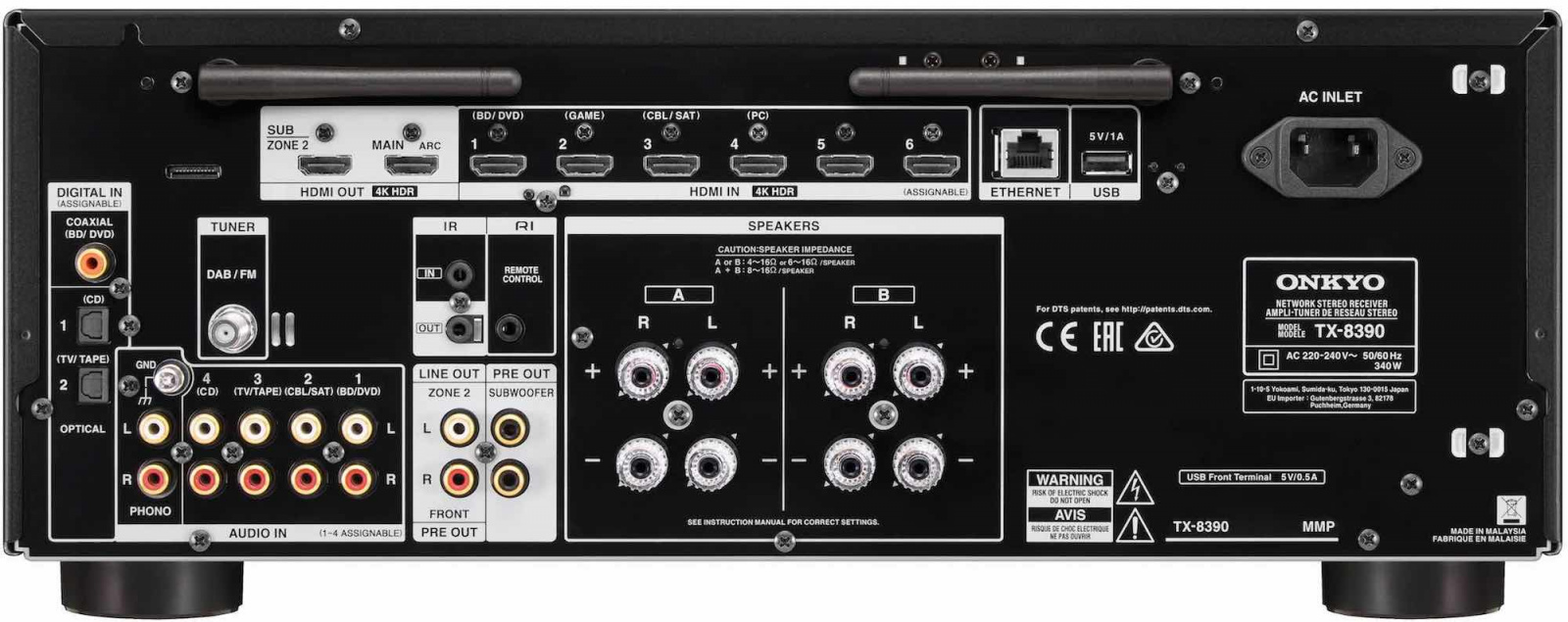

CONNECTION FEATURES

• 6 HDMI inputs and 2 outputs (Main [ARC], Sub/Zone 2)
• 3 digital audio inputs (2 optical and 1 coaxial, assignable)
• 4 analog RCA inputs (assignable)
• Phono input with built-in MM equalizer for turntable connection
• 3.5 mm setup mic input for AccuEQ Stereo (front)
• 6.35 mm headphone jack (front)
• Front L/R pre-out (analog RCA, shared with Zone 2 line-out)
• Zone 2 line-level output (analog RCA)
• 2 subwoofer pre-outs
• 4 transparent gold speaker-posts (Speaker A+B)
• Bi-directional Ethernet LAN terminal for IP control
• 1 front USB input (no power on standby) for audio playback
• 1 rear USB input (5 V/1 A including in Network Standby)
• IR (infrared) input/output for remote-control extenders
• RI (Remote Interactive) terminal for integrated control
• AC socket for detachable IEC power cord

ADVANCED FEATURES
• Bi-wire compatible loudspeakers for pristine mids and highs

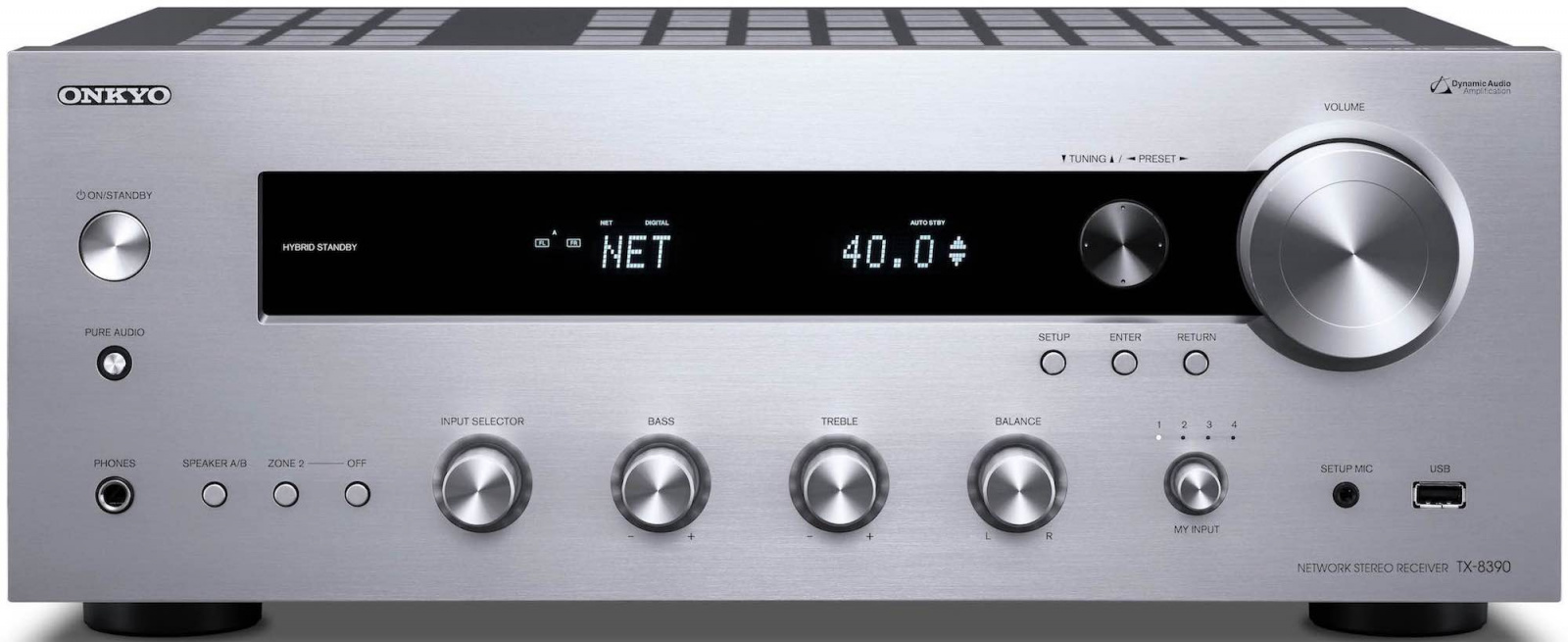

• 5 mm-thick extruded aluminum front panel
• Aluminum volume and tone controls, balance, My Input, input selector, and cursor key
• My Input selector saves four input presets with listening mode, tone/balance, and volume
• FM/RDS and DAB+ tuners with 40-station memory presets
• GUI with OSD includes transparent A/V input/output information overlay to check playback conditions without program interruption
• Sub/Zone 2 HDMI output with modes supporting simultaneous distribution of the same or different video sources*11
• A/B or A+B Speaker Drive plays an audio source through either or both pairs of connected speakers (8–16 Ω speakers required for A+B drive)
• AccuEQ Stereo with Subwoofer EQ
• Bluetooth® Ver. 4.2 wireless technology (SBC/AAC)
• Advanced Music Optimizer improves playback quality of compressed audio files
• Zone 2 line-out with Zone 2 DAC connects compatible audio systems for synced/independent D/A playback
(including HDMI/SPDIF)*12 in Main and Zone 2
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
• IP web browser control, support for AMX® and Control4® home automation
• 3-Mode display dimmer (Normal/Dim/Dimmer)

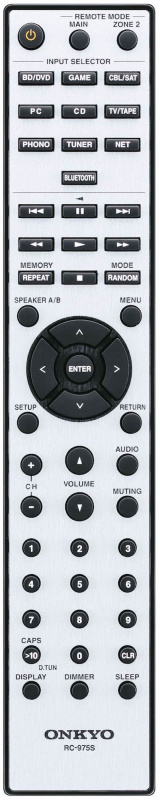

• Chic new slimline Simple Remote Control

*1 FlareConnect is a proprietary network protocol that shares select audio sources between supported components. Please visit the Onkyo website for product compatibility information.

*2 Availability of services varies with region and services may require a paid subscription.

*3 Future firmware update required.

*4 Some countries or regions have regulations that affect wireless signal strength and the use of Wi-Fi channels.

*5 When playing MQA files, irrespective of the setting of the Direct function, the Direct function is automatically enabled at all times.

*6 DSD playback over the wireless home network cannot be guaranteed. Supported sampling rates may vary depending on the network environment.

*7 Available free at the App for iPhone and iPad, and on Google Play store for Android devices. Please check device and OS requirements before installation.

*8 Requires a Sonos Connect (sold separately).

*9 Voice control requires a device featuring the Google Assistant.

*10 Voice control requires a device supporting Siri.

*11 HDMI Zone 2 Out mode can transmit the same or different A/V signals simultaneously from MAIN OUT and Sub/Zone 2 Out. Input signals are limited to HDMI inputs 1–3. HDMI Sub-Out mode transmits the same
A/V signal from any HDMI input to both displays simultaneously via MAIN OUT and Sub/Zone 2 Out.

*12 In Zone 2 mode, HDMI audio is available via HDMI inputs 1–3. SPDIF and HDMI support PCM signals only. Simultaneous playback of multiple audio sources is enabled.
