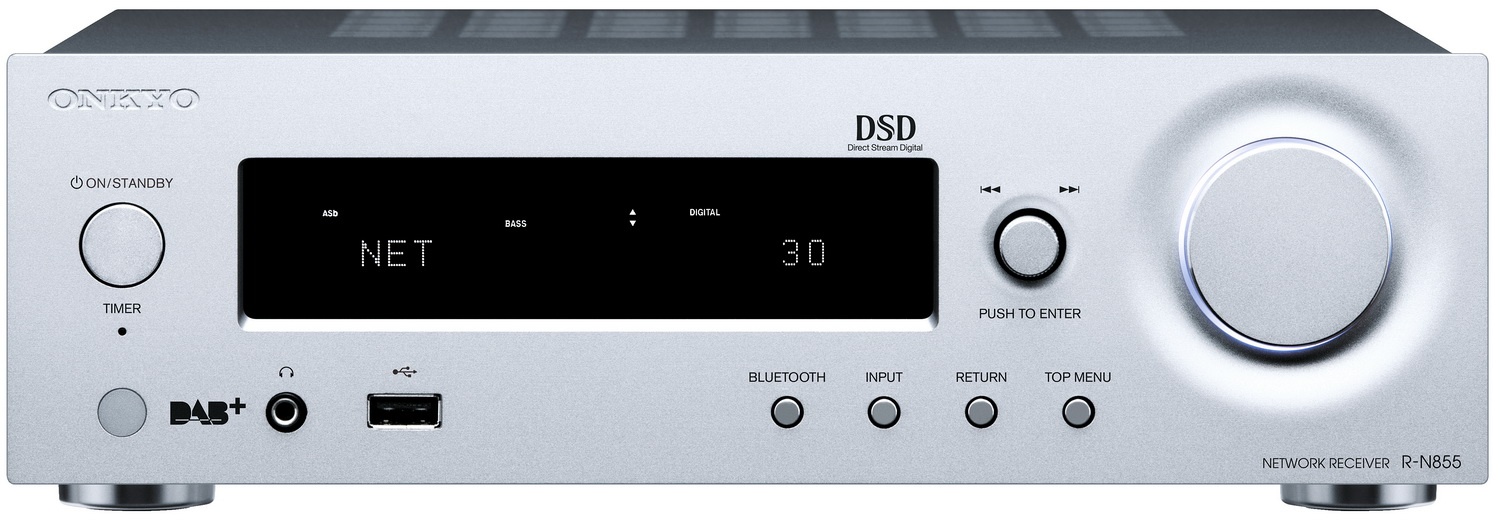

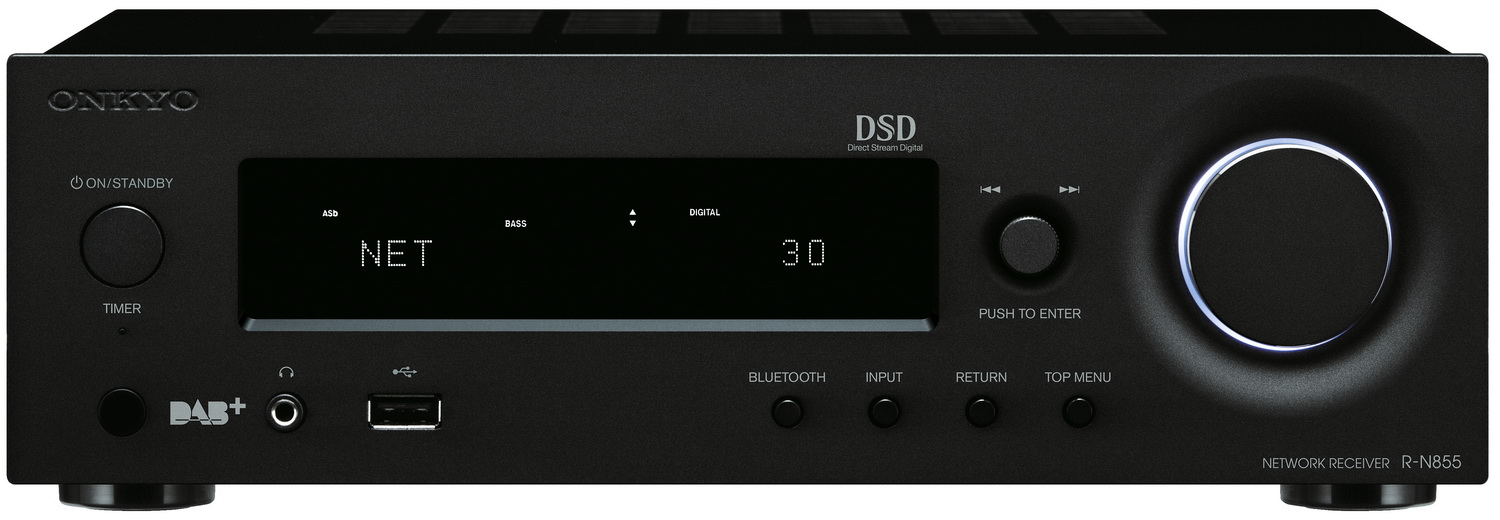

Onkyo R-N855

Описание Onkyo R-N855

Сетевой стереоресивер в узком корпусе с Google Cast, AirPlay, Wi-Fi и Bluetooth. Мощность 2х70 Вт (4 Ом). Поддерживает 11.2 MHz DSD и 192/24 PCM Hi-Res Audio по сети и USB.

Секция усилителя
Power Output: 70 W/Ch (4 Ω, 1 kHz, 1% THD, 2 Channels Driven, IEC)
THD+N (Total Harmonic Distortion + Noise): 0.08% (1 kHz, 8 Ω, 1 W)
Input Sensitivity and Impedance: 200 mV/47 kΩ (Line), 3.5 mV/47 kΩ (Phono MM)
Rated RCA Output Level and Impedance: 200 mV/2.2 kΩ (Line Out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz–60 kHz +1 dB/-3 dB (Direct)
Tone Control ±6 dB, 100 Hz (Bass), ±6 dB, 10 kHz (Treble)
Signal-to-Noise Ratio 106 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A)
Speaker Impedance 4 Ω–16 Ω

Секция тюнера
Tuning Frequency Range FM 87.5 MHz–108 MHz
FM Preset Memory 40 Stations

Общее
Power Supply AC 220–230 V~, 50/60 Hz
Power Consumption 60 W
Standby Power Consumption 0.2 W

ADVANCED FEATURES

DAB/DAB+ Tuner
Solid Aluminum Front Panel and Aluminum Volume Control
High Rigidity 1.6 mm-thick Full-Flat Anti-Resonant Metal Chassis

AMPLIFIER FEATURES

Onkyo-original Switching Amplifier Technology with Discrete Modulation Circuitry
Custom High-Output EI Transformer and Customized Audio-grade Capacitors
Flagship 768 kHz/32-bit AK4490 DAC from AKM
VLSC™ Signal Processing Removes Digital Pulse Noise
Optimum Gain Volume Circuitry Adjusts Frequency Response to Suit Volume
PLL (Phase-Locked Loop) Jitter-Cleaning Technology
Phase-Matching Bass Boost Technology for Cohesive Full-scale Sound

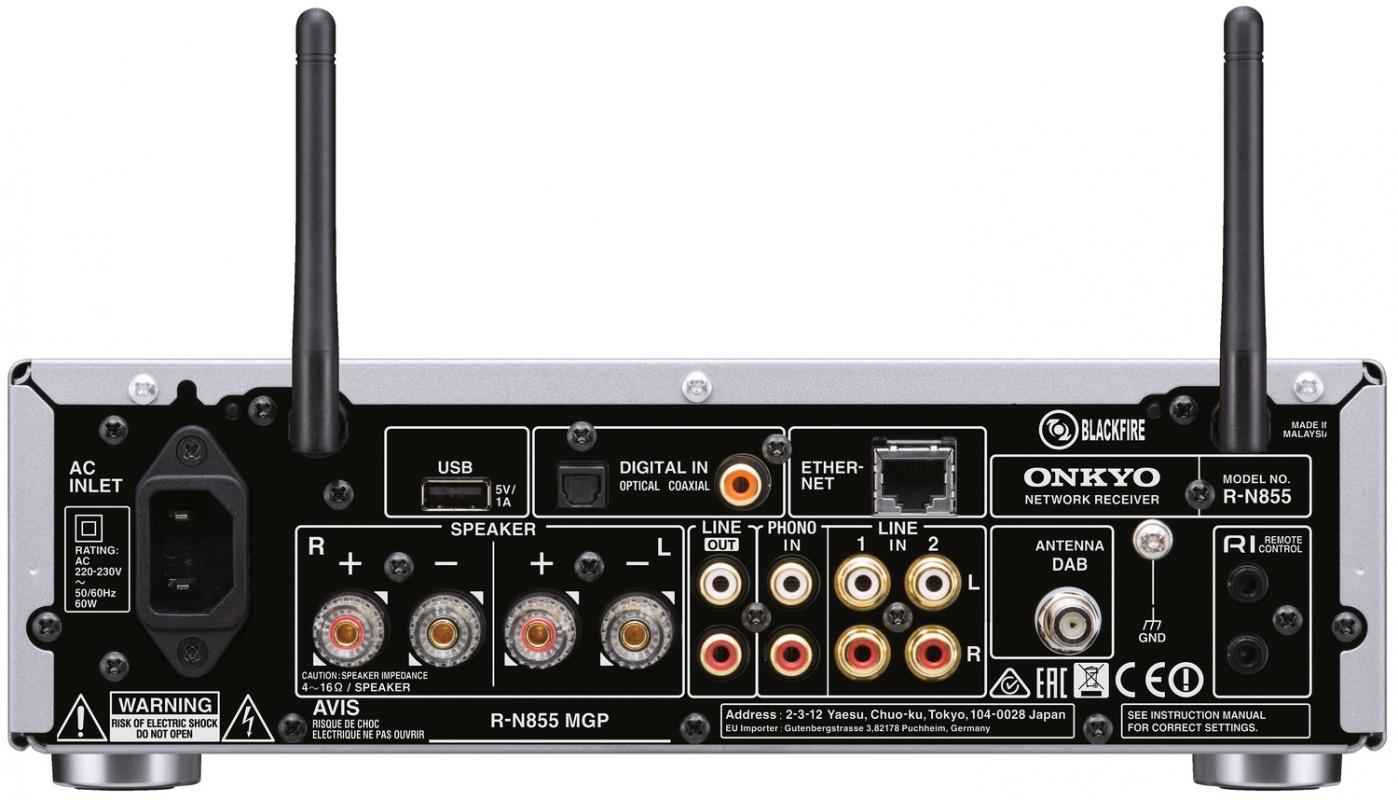

CONNECTION FEATURES

2 x USB Type-A Inputs (Front/Rear)
2 Analog Audio Inputs and 1 Output (Gold Plated)
1 Gold-plated Coaxial Digital Input and 1 Optical Digital Input
MM Phono Input and Equalizer for Turntable Connection
Gold-plated Banana-plug-compatible Speaker Posts
Subwoofer Pre-out

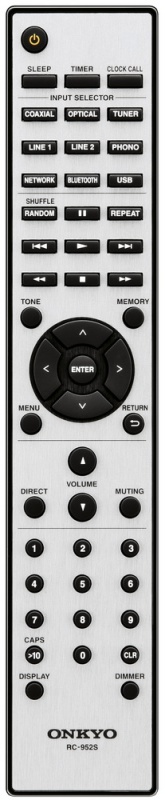

RI (Remote Interactive) Input/Output for Integrated Control of System Components with Included RI Remote
AC Inlet with Detachable Cable

OTHER FEATURES

Tone Controls (Bass/Treble, ±6 dB)
DAB+ and FM/RDS Tuners with 40 Station Presets
Auto Power-off Timer
Display Dimmer (Bright/Dim/Dimmer)
3.5 mm Headphone Output
